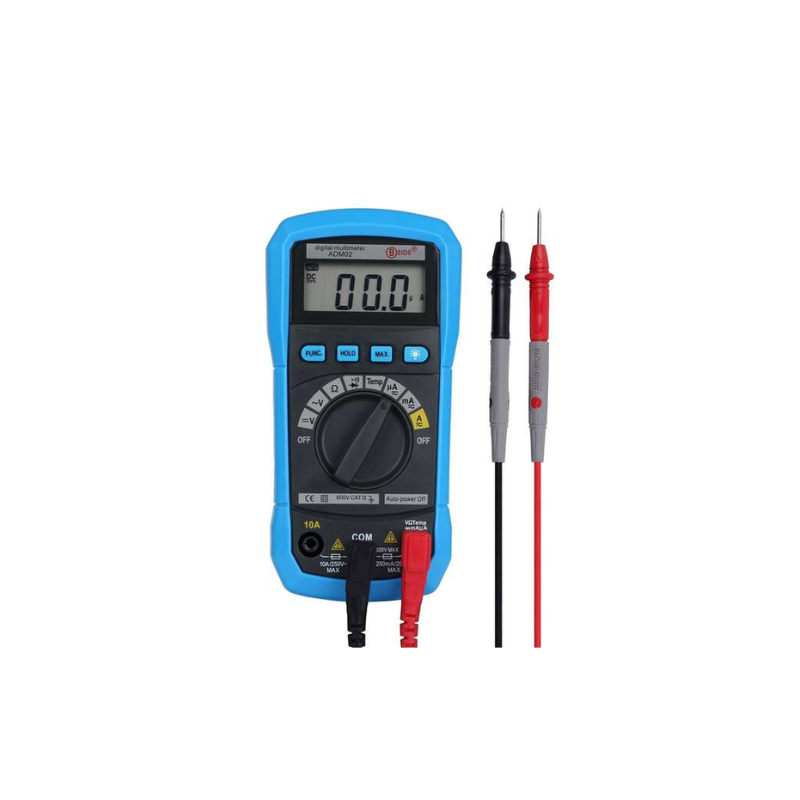

BSIDE ADM02 Digital Multi Meter with temperature sensor and autorange

BSIDE ADM02 Digital Multi Meter with temperature sensor and autorange

This Meter is a handheld and battery operated Digital Multi Meter(DMM) with multi function.

This Meter is designed to meet IEC61010-1 & CAT II 600V over voltage category and double insulation.

The meter with holster that is giving the main body, though downsized, high resistance against the shock of a drop.

The DMM as general measurement tool and widely used in the school, laboratory, factory and other social field.

Features:

• Safety Class: IEC 61010-1 CAT II 600V

• Auto ranging DMM, that full scale is 2000 counts

• Display:3 1/2 digital LCD display

• Over load protection:Used the PTC protection circuit for Resistance and temperature measurement

• AC electric field detection function(NCV function)

• DATA HOLD function

• MAX value hold function

• Back Light

• Low battery indication

• Auto Power OFF

• Power Supply:9V Battery(Not Included)

• Dimension (L x W x H) & Weight: 140 x 67 x 30mm, Approx. 112g

Specifications:

• DC Voltage:200mV/2V/20V/200V+-(0.5%+2) 600V+-(0.8%+2)

• AC Voltage:2V/20V/200V+-(0.9%+3) 600V+-(1.2%+3)

• DC Current:200uA/2000uA/20mA/200mA/10A+-(1.5%+3)

• AC Current:200uA/2000uA/20mA/200mA/10A+-(1.5%+4)

Temperature:

• -20 C~0 C (5% rdg + 4 dgt)

• 0 C ~ 400 C (2% rdg + 3 dgt)

• 400 C ~ 1000 C (3% rdg + 3 dgt)

Resistance:

• 200ohm/2Kohm/20Kohm/200Kohm+-(0.8%+2) 2Mohm/20Mohm+-(1.0%+2)

Operating temperature Humidity:

•  0~40 C (32~104 F) < 80% RH

Storage temperature Humidity:

• -10~50 C (14~122 F) < 70% RH

Includes:

• 1 x DMM Meter

• 1 x Set of Test Leads

• 1 x K-type temperature probe[P3400]
